HIGH PRESSURE TIPS
Spot and projection welding operations utilize pressures over 2000 lbs. TUFFALOY high-pressure tips have flat bottoms. Elimination of the usual tapered-sockets and tip-jamming. Assembled tip and holder heights are always the same, as contrasted to tapered tips which can be forced into the sockets varying distances.
TUFFALOY high pressure tips can be used in the two holder styles shown: PM holders for mounting on the platens of press-type welders, and straight holders for spot welder arm mounting. The tips are held to the holders by a threaded coupling. Copper tungsten faced tips are available for high pressure wear and projection welding.

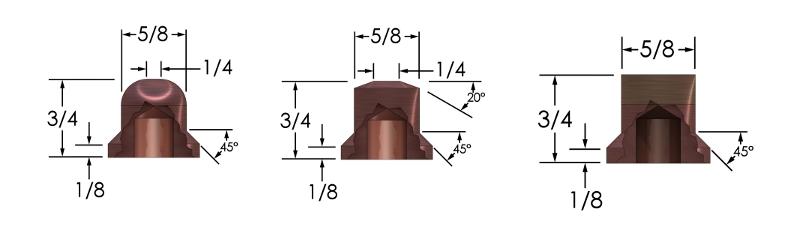

SIZE 1 PMB-2503
Item No. 180-2103
