STANDARD OFFSET HOLDERSSTANDARD OFFSET HOLDERS
TUFFALOY Cast Class 3 Alloy offset holders combine long life with good conductivity. Threaded tip adapters are easily replaced when tip socket is worn beyond use, or when you wish to change to a different taper size. The 'in-water' tube, projecting beyond the adapter, is not rigidly fixed, will withstand considerable mistreatment.

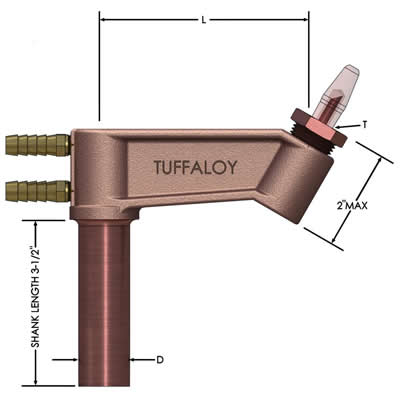

TUFFALOY offset holders are made in 2 and 4-inch offsets and in four shank sizes, with 90° and 30° heads. They are supplied with adapters for No.4 or No. 5 RW taper tips.

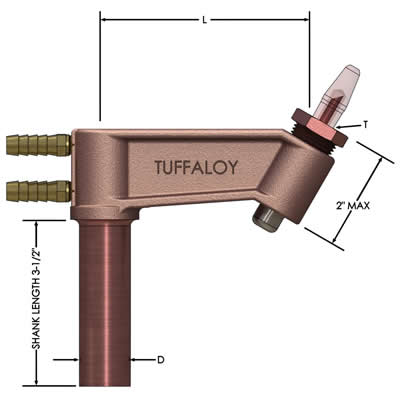

Tip Ejector mechanisms are available on all 90° head holders and the 30° head in 4-inch. offset holders. When ordering this feature change order number prefix from 'ON' to 'OE'. Example: OE-874-290.
 |
ADAPTERS SUPPLIED
4RW: AD-584 5RW: AD-585 Color |
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
||
| 4RW | 30 | ON-754-230 | 335-1300* | ON-874-230 | 335-1400* | ON-14-230 | 335-1000 | ON-1254-230 | 335-1100 | ON-154-230 | 335-1200* |
| 4RW | 90 | ON-754-290 | 335-1310* | ON-874-290 | 335-1410* | ON-14-290 | 335-1010 | ON-1254-290 | 335-1110 | ON-154-290 | 335-1210* |
| 5RW | 30 | ON-755-230 | 335-1350* | ON-875-230 | 335-1450* | ON-15-230 | 335-1050 | ON-1255-230 | 335-1150 | ON-155-230 | 335-1250* |
| 5RW | 90 | ON-755-290 | 335-1360* | ON-875-290 | 335-1460* | ON-15-290 | 335-1060 | ON-1255-290 | 335-1160 | ON-155-290 | 335-1260 |
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
||
| 4RW | 30 | ON-754-430 | 335-1320* | ON-874-430 | 335-1420* | ON-14-430 | 335-1020 | ON-1254-430 | 335-1120 | ON-154-430 | 335-1220* |
| 4RW | 90 | ON-754-490 | 335-1330* | ON-874-490 | 335-1430* | ON-14-490 | 335-1030 | ON-1254-490 | 335-1130 | ON-154-490 | 335-1230* |
| 5RW | 30 | ON-755-430 | 335-1370* | ON-875-430 | 335-1470* | ON-15-430 | 355-1070 | ON-1255-430 | 335-1170 | ON-155-430 | 335-1270 |
| 5RW | 90 | ON-755-490 | 335-1380* | ON-875-490 | 335-1480* | ON-15-490 | 335-1080 | ON-1255-490 | 335-1180 | ON-155-490 | 335-1280 |
*May not be in stock.
