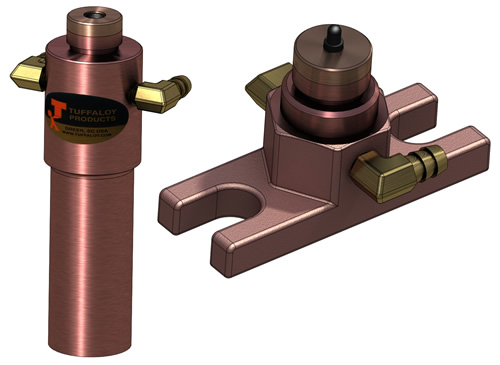

TUFFALOY NUT AND STUD WELDING
Stud Electrodes -Tuffaloy stud electrode tips are for projection-welding screws, bolts or pins, whether they pass through the sheet or are to be attached directly to its face.
Nut Electrodes -Tuffaloy projection weld nut electrodes are designed for either self-piloted or non-piloted nuts. The pilots of the non-piloted-nut electrodes are spring-loaded so they cannot interfere with the contacting of nut and sheet under welding pressure.

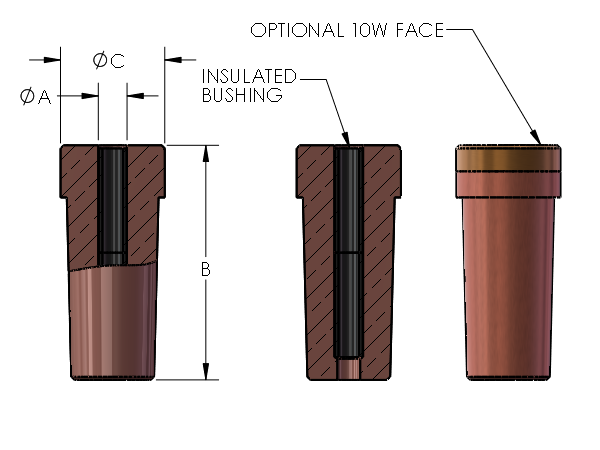

STUD ELECTRODES
FOR REPLACEMENT BUSHING
A
B
C
Description
Item Number
With 10W Face Refractory - Item Number
.150
2-1/4
1
400
175-4001
175-4001-10W
.164
401
175-4011
175-4011-10W
.190
402
175-4021
175-4021-10W
.216
403
175-4031
175-4031-10W
1/4
404
175-4041
175-4041-10W
5/16
405
175-4051
175-4051-10W
3/8
406
175-4061
175-4061-10W
6mm
506
175-5061
175-5061-10W
7mm
507
175-5071
175-5071-10W
9mm
509
175-5091
175-5091-10W
10mm
510
175-5101
175-5101-10W
3/8
2-3/4
1-1/2
436
175-4361
175-4361-10W
7/16
437
175-4371
175-4371-10W
1/2
438
175-4381
175-4381-10W
9/16
439
175-4391
175-4391-10W
5/8
440
175-4401
175-4401-10W
11/16
441
175-4411
175-4411-10W
3/4
442
175-4421
175-4421-10W
10mm
510-2
175-5102
175-5102-10W
12mm
512-2
175-5122
175-5122-10W

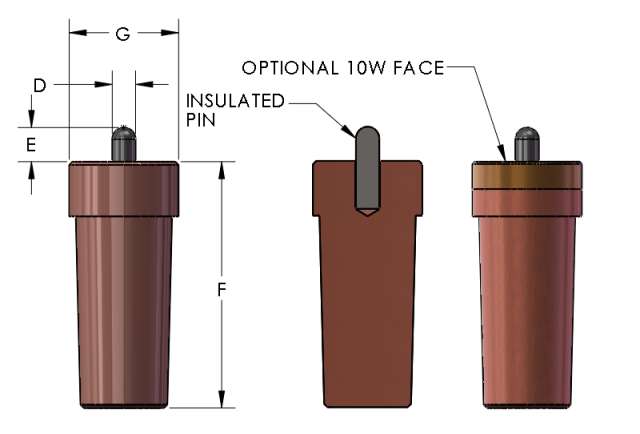

SELF-PILOTED-NUT ELECTRODES
D
For Nut Diameter
E
Pin Length
F
Electrode Length
G
Electrode Diameter
Description
Item Number
With 10W Face Refractory - Item Number
.164
3/16
2-1/4
1
411
175-4111
175-4111-10W
.190
3/16
412
175-4121
175-4121-10W
.216
1/4
413
175-4131
175-4131-10W
1/4
5/16
414
175-4141
175-4141-10W
5/16
5/16
415
175-4151
175-4151-10W
3/8
3/8
416
175-4161
175-4161-10W
6mm
1/4
606
175-6061
175-6061-10W
7mm
5/16
607
175-6071
175-6071-10W
9mm
3/8
609
175-6091
175-6091-10W
10mm
3/8
610
175-6101
175-6101-10W
3/8
3/8
2-3/4
1-1/2
456
175-4561
175-4561-10W
7/16
3/8
457
175-4571
175-4571-10W
1/2
7/16
458
175-4581
175-4581-10W
9/16
7/16
459
175-4591
175-4591-10W
5/8
1/2
460
175-4601
175-4601-10W
11/16
1/2
461
175-4611
175-4611-10W
3/4
5/8
462
175-4621
175-4621-10W
10mm
3/8
610-2
175-6102
175-6102-10W
12mm
7/16
612-2
175-6122
175-6122-10W

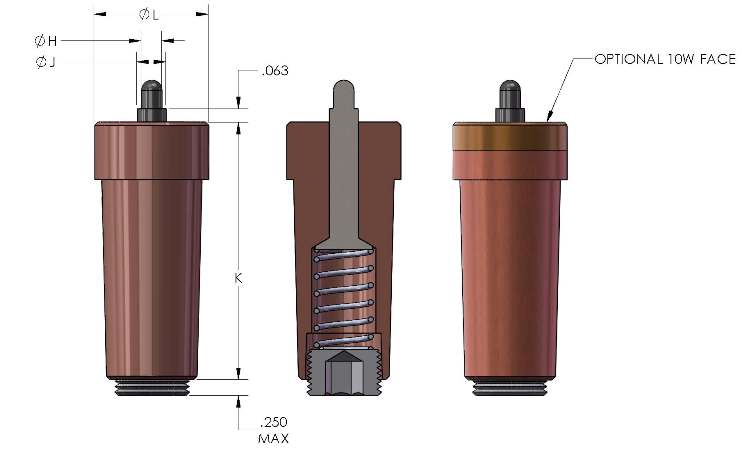

NON-PILOTED-NUT ELECTRODES
H
For Nut Diameter
J
Pilot Diameter
K
Electrode Length
L
Electrode Diameter
Description
Item Number
With 10W Face Refractory - Item Number
.164
0.18
2-1/4
1
421
175-4211
175-4211-10W
.190
0.215
422
175-4221
175-4221-10W
.216
0.24
423
175-4231
175-4231-10W
1/4
0.275
424
175-4241
175-4241-10W
5/16
0.345
425
175-4251
175-4251-10W
3/8
0.405
426
175-4261
175-4261-10W
6mm
0.261
706
175-7061
175-7061-10W
7mm
0.3
707
175-7071
175-7071-10W
9mm
0.385
709
175-7091
175-7091-10W
10mm
0.425
710
175-7101
175-7101-10W
3/8
0.437
2-3/4
1-1/2
476
175-4761
175-4761-10W
7/16
0.562
477
175-4771
175-4771-10W
1/2
0.625
478
175-4781
175-4781-10W
9/16
0.687
479
175-4791
175-4791-10W
5/8
0.75
480
175-4801
175-4801-10W
10mm
0.453
710-2
175-7102
175-7102-10W
12mm
0.595
712-2
175-7122
175-7122-10W
TUFFALOY NUT AND STUD WELDING
The various types and syzes of TUFFALOY stud-and-nut welding electrodes and holders are described below and elsewhere. For excessive wear applications any of these electrodes may be ordered with refractory metal facings, such as TUFFALOY 10W.
