METRIC NUT ELECTRODESMETRIC NUT ELECTRODES
Tuffaloy now stocks the head/pin style welding system that adds to your selection of stud and nut welding needs. From our standard style to our Arctic System, that produces higher quality welds and longer life, you can select the product that best meets your needs.
Heads are made from RWMA class 2 material - an optimal cost-consumable. Class 3 and 10W are optional for longer life. With a concave seat, the pin locates in the center of the assembly when air is applied to the system. This gives you a repeatable location for automated nut feeders to introduce the nut to the environment.
Pins have a non-conductive surface of a steel matrix that provides longer life in a repetitive motion environment. With the threaded head securing the pin in place, it makes it easy to replace the pin to meet your requirements. Tuffaloy can design pins for special applications.

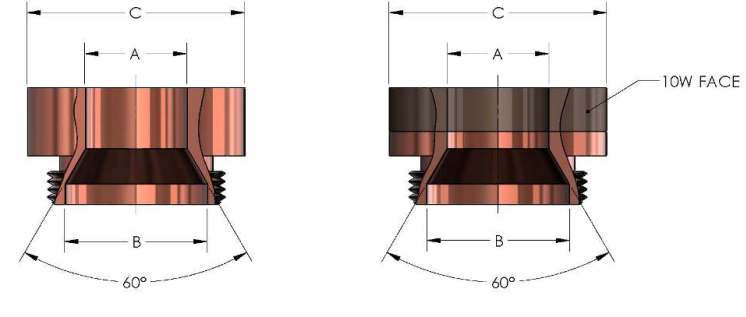

HEADS |
||||
 |
PART NUMBER | A
PIN SIZE |
B
THREAD |
C
DIAMETER |
| 175-8005
175-8006 175-8007 175-8008 175-8009 |
5mm
6mm 7mm 8mm 9mm |
M18 | 1" | |
| 175-8010
175-8011 175-8012 175-8013 |
10mm
11mm 12mm 13mm |
M22 | 1.125" | |
PINS |
||||
 |
PART NUMBER | A
NUT |
B
OAL |
C
BASE |
| 195-3004
195-3005 195-3006 195-3007 195-3008 195-3009 |
4mm
5mm 6mm 7mm 8mm 9mm |
1.12"
1.17" 1.23" 1.24" 1.25" 1.19" |
12mm | |
| 195-3010
195-3011 195-3012 195-3013 |
10mm
11mm 12mm 13mm |
1.37"
1.38" 1.40" 1.37" |
16mm | |

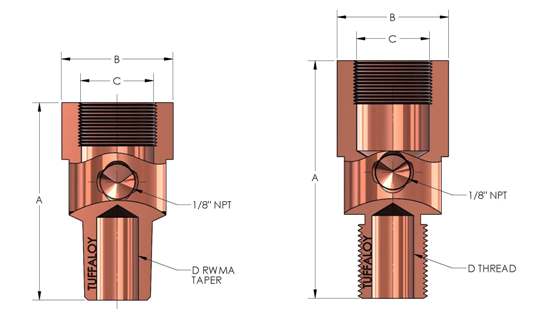

BODIES |
|||||
 |
PART
NUMBER |
A
OAL |
B
DIAMETER |
C
THREAD |
D
TAPER |
| 301-0004
301-0005 301-0015 |
1.77"
1.97" 1.97" |
1"
1" 1.125" |
18mm
18mm 22mm |
#4
#5 #5 |
|

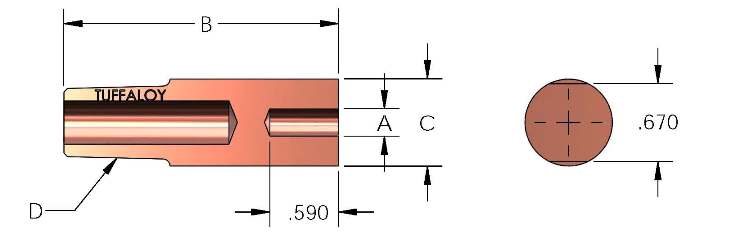

UPPER ELECTRODE |
|||||
 |
PART
NUMBER |
A
INSIDE DIAMETER |
B
OAL |
C
DIAMETER |
D
TAPER |
| 186-0101
186-0102 186-0103 186-0104 186-0105 |
5mm
6mm 7.5mm 10mm 12mm |
2.36" | .625"
.75" .75" .75" .75" |
5RW | |
